The catheter moves.
The guidewire stays.

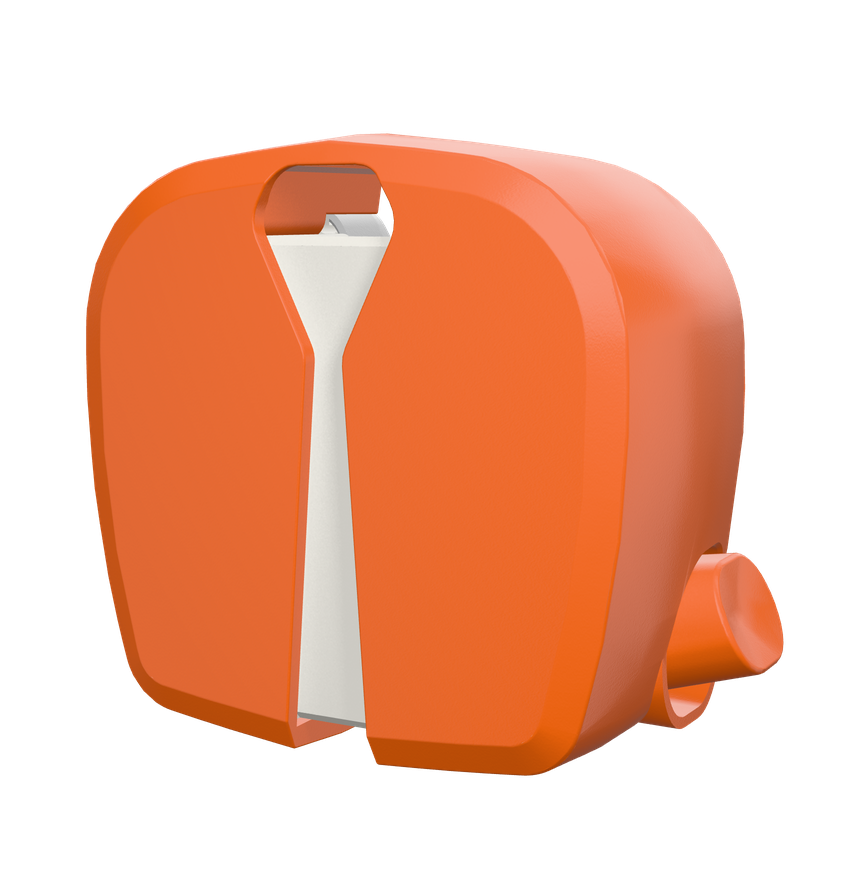

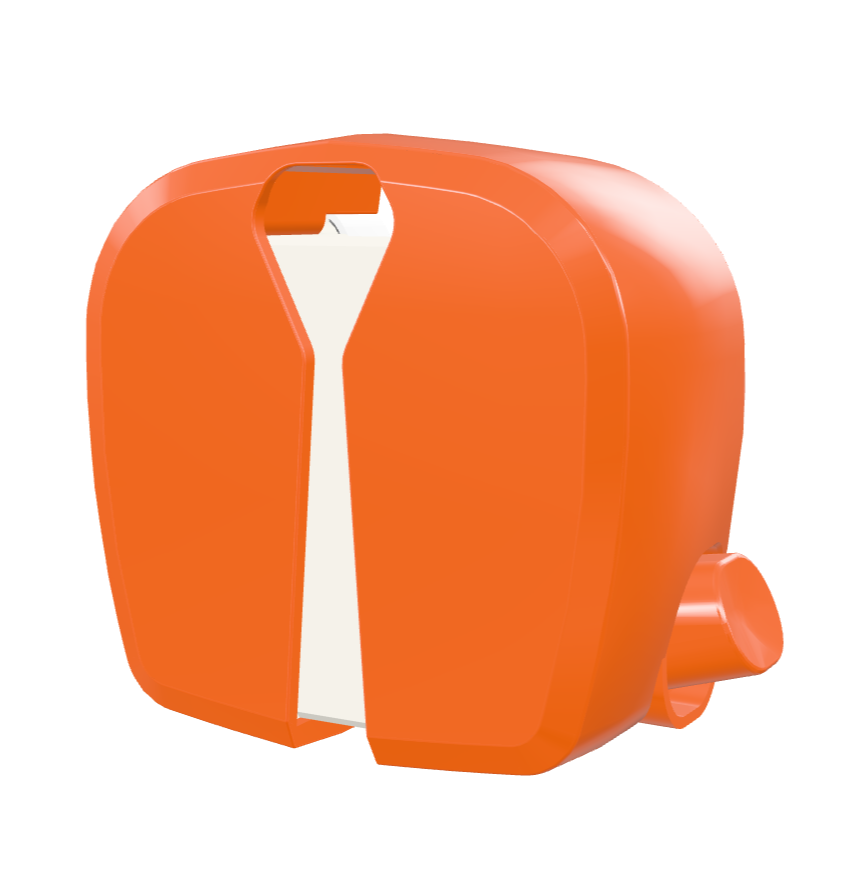

Designed for controlled catheter exchange over a guidewire.
Loading 3D…
HOW IT WORKS IN THREE STEPS
From connection
to withdrawal.
Explore each action separately. The images show how GuideGrip works.

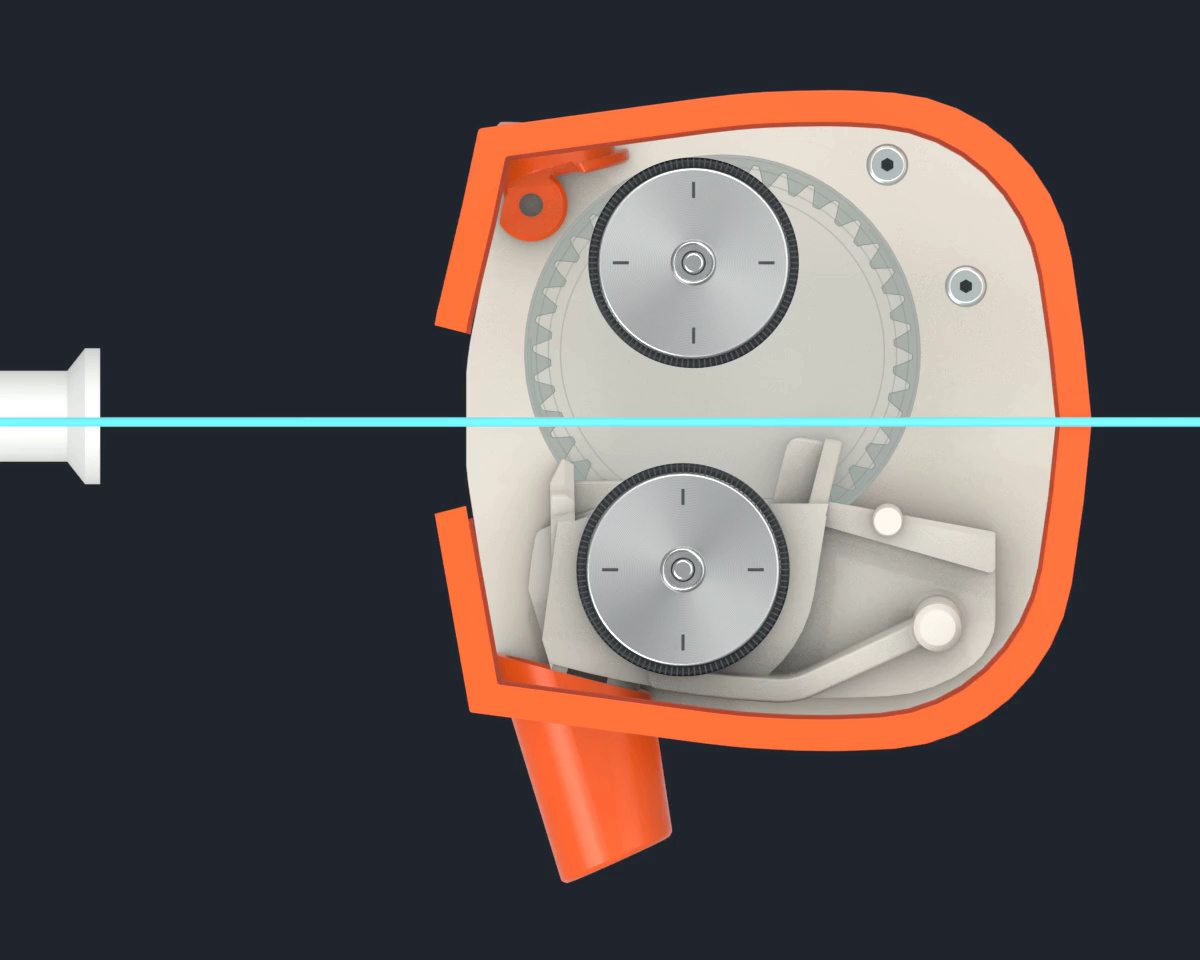

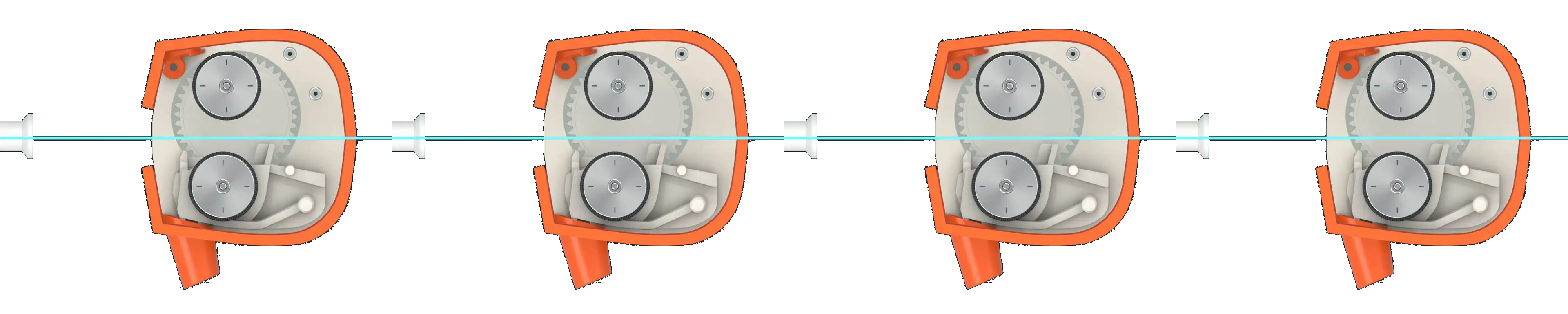

01 · Dock
First, secure the catheter.
GuideGrip reaches the catheter connection in its open position. The first squeeze allows you to align the catheter without moving the guidewire.
The wheels remain apart.
The guidewire remains free.

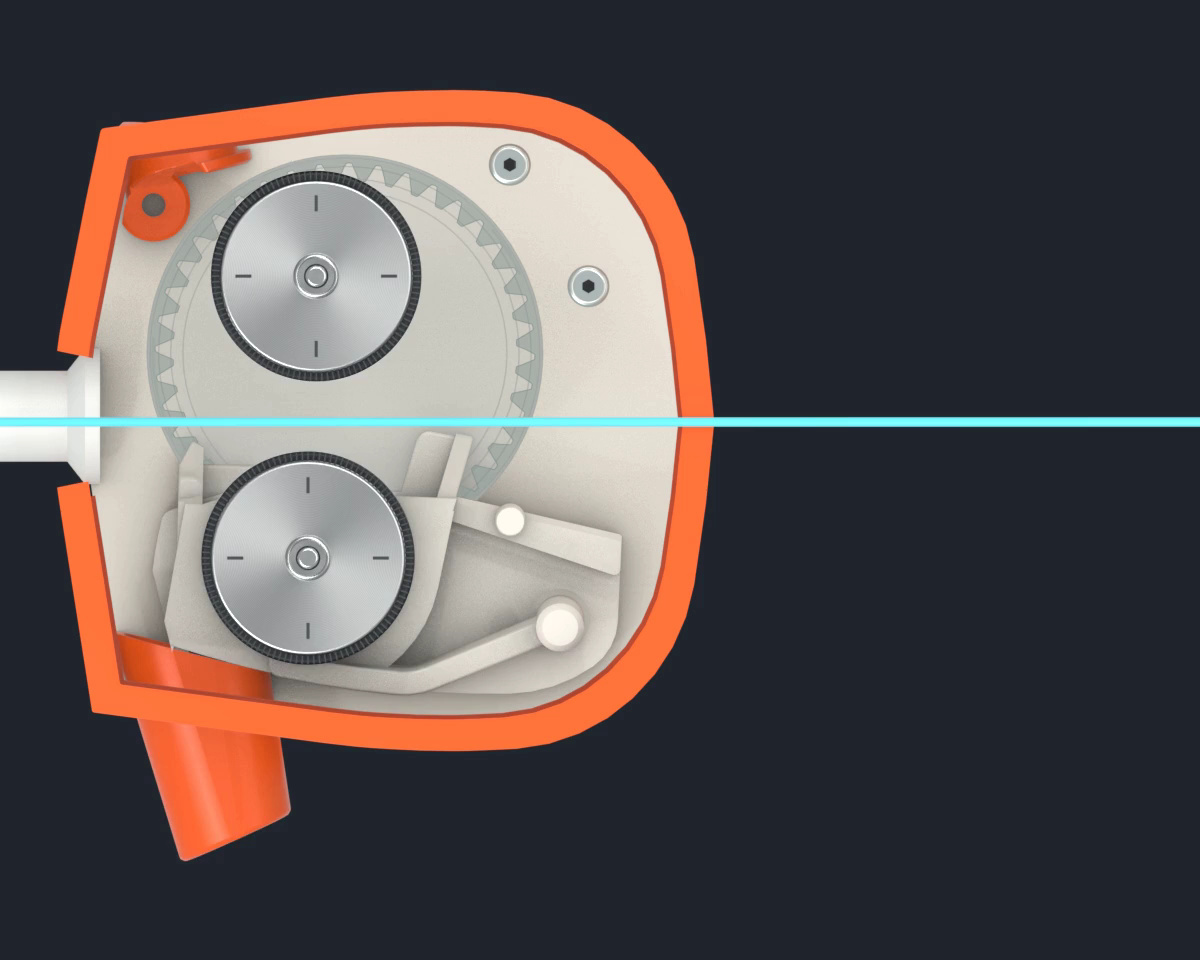

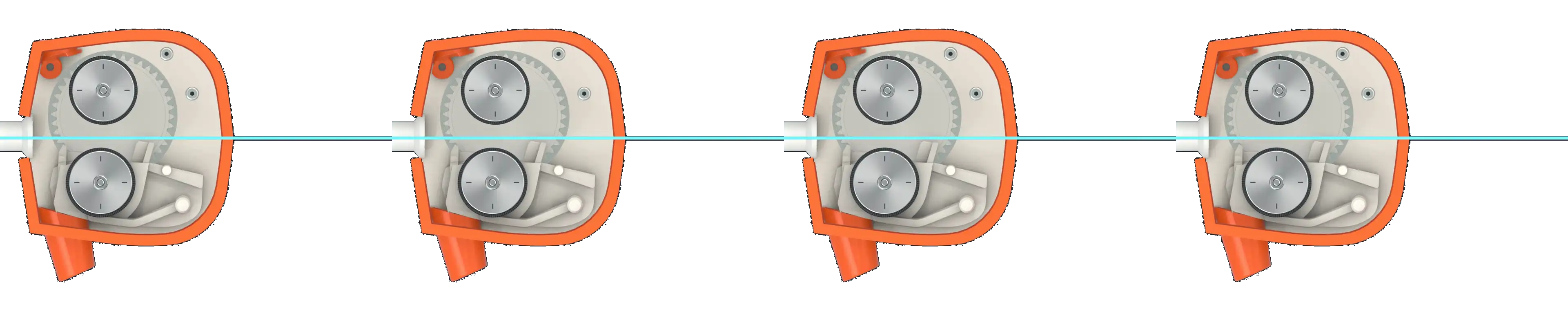

02 · Engage
Then, engage the guidewire.
Squeezing further brings the two wheels towards each other and grips the guidewire.
- The two wheels move towards each other.
- The guidewire is held between the wheels.

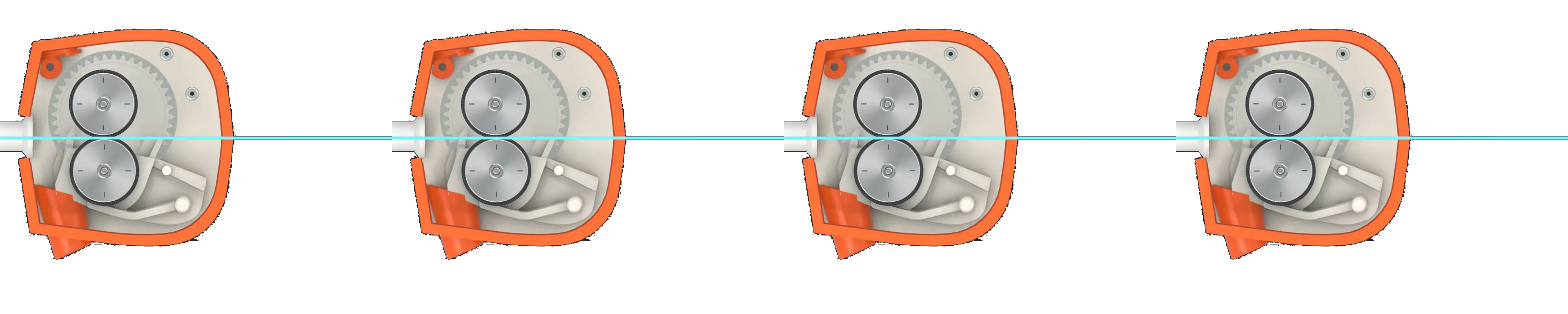

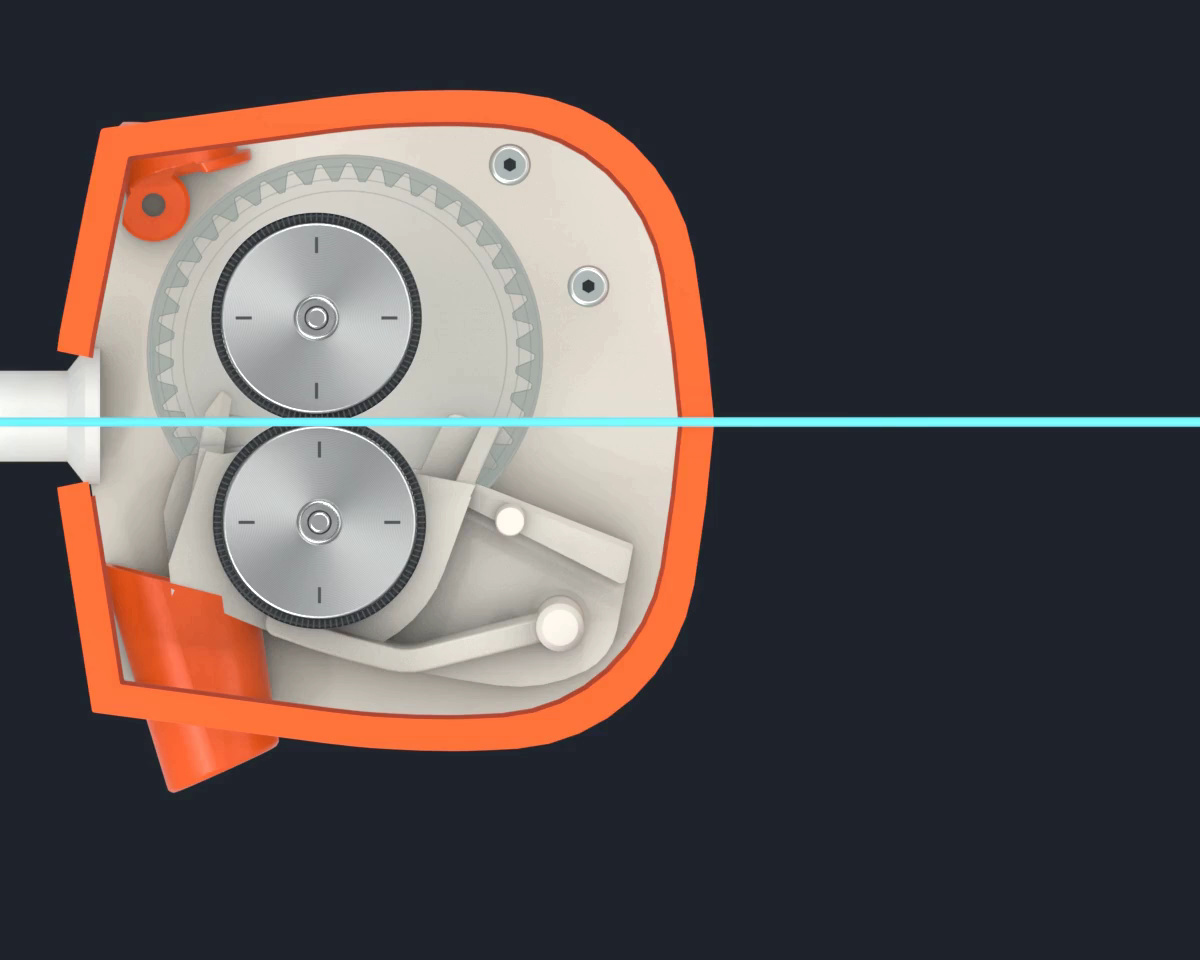

03 · Retract
Withdraw together.
The guidewire stays in position while the catheter is withdrawn.
- GuideGrip and the catheter move together.
- The two wheels rotate in opposite directions.

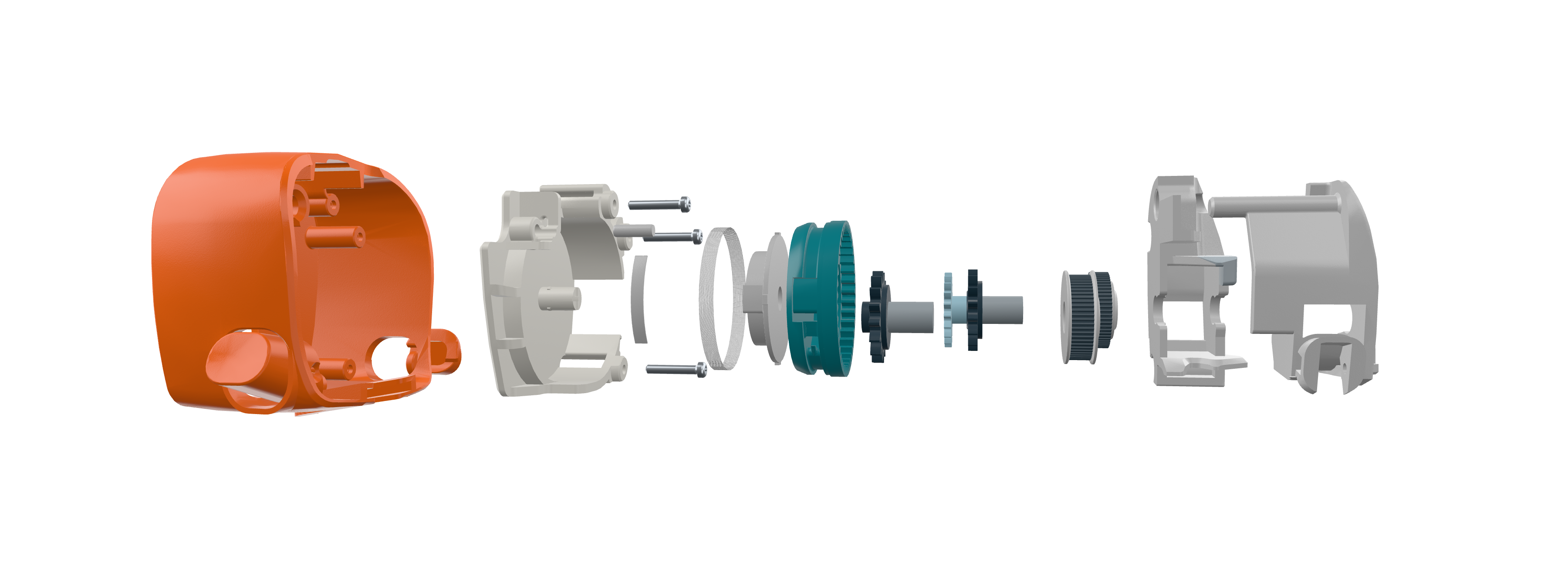

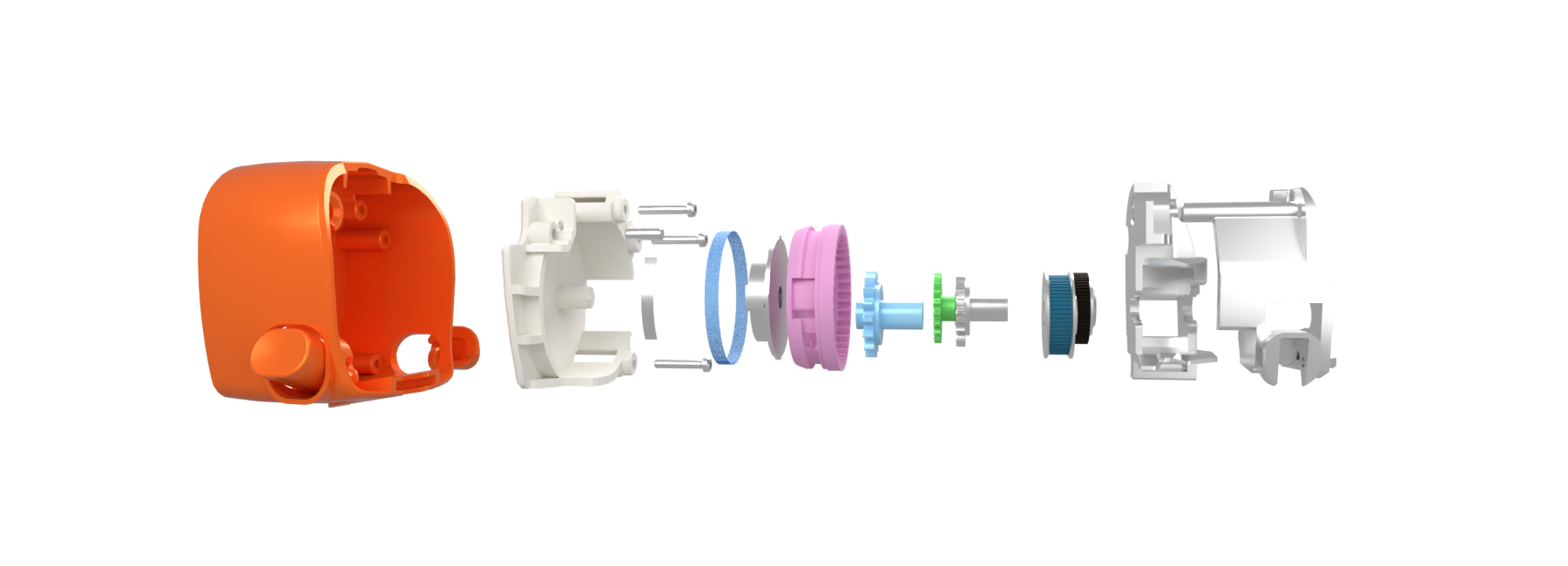

THE MECHANICAL PRINCIPLE
Inside the device.
Through to the movement.
GuideGrip couples catheter withdrawal to a counter-motion of the internal wheel mechanism.
THE COMPLETE ANIMATION
See the concept
in motion.
The animation shows the structure of GuideGrip and how the concept works during catheter exchange.
SURVEY RESULTS
Insights from clinical practice
Report to be less than satisfied with current workflow
Would consider using GuideGrip
FREQUENTLY ASKED QUESTIONS
Good to know.
Key questions about the concept and the current stage of development.
Another question? Get in touch.What is GuideGrip?
GuideGrip is a mechanical device for controlled catheter exchange over a guidewire. Its internal wheel mechanism couples catheter withdrawal to a counter-motion, keeping the guidewire in position.
Does GuideGrip enter the patient?
GuideGrip is designed as a fully extracorporeal accessory: it operates at the proximal catheter interface and guidewire, outside the patient.
Is GuideGrip available for clinical use?
GuideGrip is in the pre-commercial development phase and is not yet available for clinical use.
Which catheters and guidewires are compatible?
GuideGrip is designed for use with all catheters and with guidewires ranging from 0.014″ to 0.035″ in diameter.
Who can collaborate with GuideGrip?
We welcome discussions with clinical experts, medical-device manufacturers, regulatory specialists and strategic partners. Please get in touch to explore the possibilities.
